Analyzers

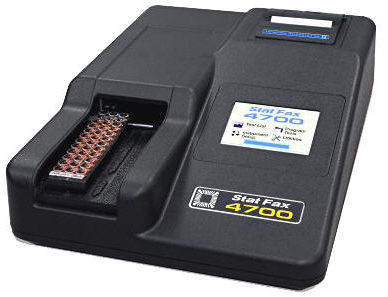

Stat Fax 4700 EIA Microstrip Reader
CATALOG #: AW-STATFAX-4700
Ideal for teaching future Laboratory Professionals the fundamentals of Enzyme Immunoassay testing
The Stat Fax 4700 is a compact EIA Microstrip reader with user programmable test menu and several calculation modes. The intuitive interface with touch screen display and on-board printer makes for user-friendly operations. A 3 strip loading capacity means you can run up to 36 tests at a time and the Auto-TrackTM automatically positions each strip for reading. The Stat Fax 4700 is dependable, maintenance-free and easy to operate.
* For Research and Education Use Only
FEATURES
- Portable
- Light-weight
- Durable
- Maintenance Free
- Excellent for Research
- Ideal for Teaching
SPECIFICATIONS
| Linear measurement range: | 0.00 to 3.0 absorbance units (A) |
| Photometric accuracy: | ± (1% of the reading + 0.01 A) from 0 to 1.5A ± (2% of the reading + 0.01A) from 1.5 to 3.0A |
| Stability: | Drift of no more than 0.005A in 8 hours |
| Warm up time: | 45 seconds, built in |
| Light source: | Tungsten lamp with lamp saver feature |
| Standard wavelengths: | Standard: 405, 450, 492, 630nm Six filter UV: 405, 450, 492, 630, 545, and 340nm Six filter VIS: 405, 450, 492, 630, 600, and 545nm |
| Type of filter: | IAD hard coat interference filter, 10nm half bandpass |
| Vessel: | Non-break-apart or break-apart strips up to 12 wells long |
| Transport Mechanism: | Auto-TrackTM automatic strip transport |
| Speed: | Reads, calculates and prints results up to 12 wells in about 30 seconds |
| Display: | Interactive Touchscreen 3.5”LCD, color graphic display |
| Printer: | Thermal on-board printer with graphic capability |
| Test Menu: | 120 Open channels to store tests Stores all parameters including wavelengths, calculations, unit codes, ranges, interpretations, calibrator values, test names and previous curve |
| Calculation modes: | Single point calibration by standard or factor, multi-point calibration with point-to-point curve fit, linear regression with log, lin and log-logit selections |
| Interface: | USB Mouse |
| Power Requirements: | 100V-240V AC, 1.2A, 50-60Hz (universal input) |
| Enclosure: | Flame-retardant ABS Plastic cover and base |
| Dimensions: | Approx. 9”x 13.5”x 5”, (24 x 34 x 13 cm) 5lbs. (4.5 Kg) |
